Why a Spec Sheet Alone Will Not Tell You Which Handheld to Buy

The ASUS ROG Xbox Ally X20 launched in the United States on October 15, 2026, priced at 1,299.99 dollars, with a 2,499 dollar bundle for buyers who want extra accessories, according to ASUS’s own press materials and a launch day hands on from Tom’s Guide. It ships with a 7.4 inch OLED display, an AMD Ryzen AI Z2 Extreme processor, 24GB of LPDDR5X memory, a 1TB PCIe Gen 4 SSD, and an 80Wh battery. Valve’s Steam Deck OLED, by contrast, starts at 789 dollars for the 512GB model and 949 dollars for the 1TB model on the official Steam Deck store page, built around a 6nm custom APU, 16GB of LPDDR5 memory, a 50Wh battery, and a smaller 7.4 inch OLED panel running at 1280 by 800 pixels instead of full 1080p.

Put those numbers side by side and the ROG Xbox Ally X20 looks like the obvious winner on paper. It has more memory, a sharper screen, a bigger battery cell, and a newer chip. What the spec sheet cannot tell you is that the Steam Deck’s 50Wh battery often outlasts the Ally’s 80Wh cell in real play sessions because SteamOS carries far less background overhead than Windows 11, or that the X20’s higher resolution panel demands more GPU work to hit the same frame rate the Deck reaches at a lower native resolution. Numbers on a page do not capture thermal throttling after 20 minutes, Proton compatibility quirks, or how a game you actually own performs at your preferred graphics settings. That gap is exactly what this tutorial is built to close.

Prerequisites: Tools, Software Versions, and What You Need on Hand

You do not need to own both devices to follow along, though the later benchmarking steps assume you have access to at least one handheld running SteamOS and one running Windows 11. Gather the following before you start.

A Steam Deck (OLED model recommended) running SteamOS 3.6 or later in Desktop Mode, or any other SteamOS/Linux based handheld.
A ROG Ally, ROG Ally X, ROG Xbox Ally, or ROG Xbox Ally X20 running Windows 11 24H2 or later.
inxi 3.3 or newer for Linux hardware queries (most SteamOS Desktop Mode images already include a package manager that can install it).
HWiNFO64 version 8.0 or newer for Windows hardware queries.
PresentMon 2.3 or newer, Intel’s open source frame time capture tool, for Windows benchmarking.
MangoHud 0.7 or newer for SteamOS/Linux frame time overlay and CSV logging.
3DMark Wild Life Extreme, available on both the Microsoft Store and Steam, for a cross platform GPU benchmark.
Python 3.11 or newer with the pandas library installed (pip install pandas) on whichever machine you use to analyze the logs.
A microSD card or USB drive to move CSV log files between the two handhelds and your main PC.

None of this costs anything beyond the price of the handhelds themselves. Every tool listed is free, and the Python script you will build in step nine runs on any machine with Python installed, including the Steam Deck’s own Desktop Mode. Budget roughly 60 to 70 minutes for a single game comparison once both devices are set up: about 15 minutes for the spec research and command line queries, 20 minutes for a 3DMark run and a short benchmark session on each device, and the rest for parsing the logs and building your scorecard. A full battery rundown test adds another 2 to 4 hours per device, but that time runs in the background while you do something else, so it does not need to block the rest of the process.

It also helps to decide upfront whether you are testing a brand new, out of box unit or a device you have owned for a while. A handheld that has accumulated dust inside its fan assembly, or one running an outdated firmware revision, will post worse thermal and frame rate results than a fresh unit regardless of its underlying chip. If you are comparing a used Steam Deck against a new ROG Xbox Ally X20, update both devices to their latest firmware and OS build first, and consider a quick fan and vent cleaning on the older unit so the comparison reflects the hardware itself rather than a maintenance gap.

Step 1: Define Your Use Case and Budget Before You Compare Anything

Skipping this step is the single biggest reason people regret a handheld purchase. Before you open a single spec sheet, write down three things: the games you actually want to play, the maximum amount you are willing to spend, and whether you care about a specific operating system. A Steam Deck OLED at 789 dollars running demanding AAA titles at native settings will feel underpowered next to a 1,299.99 dollar ROG Xbox Ally X20. That same Steam Deck running 2D indies, older titles, or anything through cloud streaming will feel identical to the pricier machine, because the bottleneck in that scenario is your internet connection or the game’s own engine, not the chip inside the handheld.

Budget matters just as much as raw performance. ASUS currently sells three tiers in the Ally lineup: the original ROG Xbox Ally at 599 dollars, the ROG Xbox Ally X at 999 dollars, and the new ROG Xbox Ally X20 at 1,299.99 dollars, according to ASUS’s own pricing confirmed at launch. Valve sells exactly two Steam Deck OLED configurations, 789 dollars and 949 dollars, with no mid tier chip upgrade available at any price, a jump covered in more detail in a recent breakdown of this year’s handheld pricing shifts. If your budget caps out around 600 to 800 dollars, the real comparison is Steam Deck OLED versus the base ROG Xbox Ally, not the flagship X20. Write your number down now so the rest of this process has a target instead of becoming an exercise in chasing the most powerful machine regardless of cost.

Step 2: Pull the Official Spec Sheets From Valve and ASUS

Go directly to the manufacturer’s own product page for each device rather than trusting a reseller listing or a forum post, since those secondary sources are where outdated clock speeds and wrong battery figures tend to spread. Valve’s Steam Deck OLED page and ASUS’s ROG Xbox Ally X20 product page are both kept current, and ASUS also confirmed the X20’s launch pricing and specs in a dedicated press release covered by Phandroid at launch. Copy the figures into a simple table like the one below so you have a single reference instead of four browser tabs open at once.

Spec	Steam Deck OLED	ROG Xbox Ally X20	ROG Ally X (2024)	Original ROG Ally (2023)
CPU	Custom 6nm APU, Zen 2, 4 cores / 8 threads	AMD Ryzen AI Z2 Extreme	AMD Ryzen Z1 Extreme, Zen 4, 8c/16t, up to 5.1GHz	AMD Ryzen Z1 Extreme, Zen 4, 8c/16t, up to 5.1GHz
GPU	Integrated RDNA 2, 8 compute units	Integrated graphics on the Z2 Extreme package	RDNA 3, 12 compute units, up to 8.6 TFLOPS	RDNA 3, 12 compute units, up to 8.6 TFLOPS
RAM	16GB LPDDR5	24GB LPDDR5X	Up to 24GB LPDDR5X	16GB LPDDR5, 6400MT/s
Storage	512GB or 1TB NVMe SSD	1TB PCIe Gen 4 SSD	Up to 2TB	512GB PCIe 4.0 NVMe
Display	7.4 inch OLED, 1280×800, 90Hz	7.4 inch OLED, 1920×1080, 120Hz, Nebula HDR	7 inch IPS, 1920×1080, 120Hz	7 inch IPS, 1920×1080, 120Hz
Battery	50Wh	80Wh	80Wh	40Wh
Operating system	SteamOS 3 (Linux based)	Windows 11 with Xbox full screen experience	Windows 11 Home	Windows 11 Home
Launch price	$789 (512GB) / $949 (1TB)	$1,299.99	Not separately confirmed at launch	$699

Note the display entry closely. Both the Steam Deck OLED and the ROG Xbox Ally X20 use a 7.4 inch OLED panel, but the Ally X20 packs more than twice the pixels into that same physical size, which is exactly why ASUS paired it with a more powerful chip. A sharper screen is only an advantage if the hardware underneath can push enough frames to make use of it, which is what the next several steps are designed to test rather than assume.

Step 3: Compare the Processors, From Zen 2 to Ryzen AI Z2

The Steam Deck OLED still runs on the same four core, eight thread Zen 2 architecture Valve shipped in the original 2022 Deck, just manufactured on a smaller 6nm process for better efficiency and less heat. That chip is now four product generations behind what ASUS puts in its current lineup. The ROG Xbox Ally X20 uses AMD’s Ryzen AI Z2 Extreme, while the ROG Ally X and the original ROG Ally both run the Ryzen Z1 Extreme, an eight core, 16 thread Zen 4 design that boosts up to 5.1GHz with 24MB of total cache, according to ASUS’s own published specifications for those models.

What that generational gap means in practice depends heavily on the game. Titles that lean on single thread performance for physics or AI calculations, which describes a large share of simulation and strategy games, benefit directly from Zen 4’s higher clock speeds and improved instructions per cycle over Zen 2. Titles that are primarily GPU bound see a smaller CPU driven difference, because the graphics chip becomes the limiting factor well before the processor runs out of headroom. This is the first place where running your own test matters more than reading a core count: two CPUs with the same thread count can behave very differently depending on what kind of work a specific game asks them to do.

Step 4: Compare the Graphics Hardware and Power Draw

Graphics is where the generational gap becomes hardest to ignore. The Steam Deck OLED’s integrated RDNA 2 graphics block carries 8 compute units, the same configuration Valve has shipped since 2022. The ROG Ally X and the original ROG Ally both carry a newer RDNA 3 design with 12 compute units rated up to 8.6 TFLOPS, roughly 50 percent more compute units than the Deck on an architecture that is also more efficient per clock. ASUS has not published a separate TFLOPS figure for the Ryzen AI Z2 Extreme’s integrated graphics in the X20 at the time of writing, so treat any number you see for that specific chip from a third party as an estimate rather than a confirmed spec until ASUS publishes one directly.

Power draw is the other half of this comparison that a raw compute unit count ignores entirely. All four of these handhelds let you cap a TDP (thermal design power) range, typically somewhere between 9 and 30 watts depending on the model and power profile selected. A higher compute unit count only matters if the device is actually allowed to use the power needed to feed it. Running the ROG Xbox Ally X20 in its lowest power Silent profile and comparing the resulting frame rate against a Steam Deck OLED running flat out at its own power ceiling is not a fair test, and it is one of the most common mistakes reviewers and shoppers make when they compare these devices casually. Lock both devices to their highest sustained performance profile before you run any benchmark in step eight.

Step 5: Compare Memory, Storage, and Expansion Options

Memory capacity and speed affect frame pacing more than most buyers expect from an integrated graphics system, because the GPU on these chips pulls directly from the same memory pool the CPU uses. The Steam Deck OLED carries 16GB of LPDDR5 memory. The ROG Xbox Ally X20 and ROG Ally X both carry 24GB of faster LPDDR5X memory, a meaningful jump in both capacity and bandwidth that becomes most visible in memory hungry open world titles and in any game running through emulation layers, which lean harder on available RAM than natively compiled titles.

Storage comparisons are simpler on paper but still carry traps. The Steam Deck OLED ships in 512GB and 1TB tiers using standard NVMe SSDs that Valve’s own teardown guides confirm are user replaceable. The ROG Xbox Ally X20 ships with a single 1TB PCIe Gen 4 SSD configuration, while the ROG Ally X scales up to 2TB depending on the configuration ASUS sells at a given time. Both platforms support microSD expansion for additional storage, though write speeds on microSD cards are dramatically lower than the internal SSD on either device, which matters if you plan to install and run games directly from the card rather than just storing media or save backups there.

Step 6: Compare the Displays, OLED Panel Size Versus Resolution

This is the comparison most shoppers get backward. Both the Steam Deck OLED and the ROG Xbox Ally X20 use a 7.4 inch OLED panel, the same physical screen size, but the Ally X20 packs a full 1920 by 1080 resolution at a 120Hz refresh rate into that space, versus the Deck’s 1280 by 800 resolution capped at 90Hz. On a spec sheet, more pixels and a higher refresh rate always reads as better. In practice, a higher resolution panel asks significantly more of the GPU to hit the same frame rate, and a 120Hz panel is worthless if the game you are running cannot sustain anywhere close to 120 frames per second on that hardware.

The Deck’s lower native resolution is arguably a deliberate design decision rather than a limitation. Valve built the Deck around a resolution its RDNA 2 graphics could actually drive at playable frame rates in most of the Steam catalog, rather than chasing a marketing number it could not sustain. When you move into the benchmarking steps below, pay close attention to whether each device is rendering at its native resolution or being forced to upscale, since a game running at 1080p native on the Ally X20 is doing meaningfully more graphics work per frame than the same game running at 800p on the Deck, even if both devices report a similar frame rate on screen.

Step 7: Query Your Own Hardware From the Command Line

Manufacturer spec sheets are a starting point, not a verification step. Before you trust any number, confirm what your specific unit actually reports once it is running. On SteamOS, switch to Desktop Mode, open a terminal (Konsole), and run the following to pull a hardware summary and confirm clock speeds and driver versions directly from the device.

# From Steam Deck Desktop Mode, install inxi if it is not already present
sudo pacman -S inxi --noconfirm

# Full hardware summary
inxi -Fxxxza | less

# Quick CPU clock and thread summary
lscpu | grep -E "Model name|Socket|Thread|CPU MHz"

# GPU driver and API version summary
vulkaninfo --summary | grep -E "deviceName|driverVersion|apiVersion"

On Windows 11, open PowerShell and run the equivalent queries. You do not need administrator rights for any of these commands.

# System overview
Get-ComputerInfo | Select-Object CsSystemType, OsName, OsVersion

# CPU details: cores, logical processors, and reported clock speed
Get-CimInstance Win32_Processor | Select-Object Name, NumberOfCores, NumberOfLogicalProcessors, MaxClockSpeed

# GPU details: name, memory, and driver version
Get-CimInstance Win32_VideoController | Select-Object Name, AdapterRAM, DriverVersion

Save the output from both devices into a plain text file. You will compare this against your spec sheet table from step two, and against the benchmark results you capture in the next step. Discrepancies here, such as a reported clock speed well below the advertised boost figure, usually point to a thermal or power profile issue rather than a defective unit, which the troubleshooting section later Covers in detail.

Step 8: Install a Cross Platform Benchmark Suite and Capture Frame Times

3DMark Wild Life Extreme is the closest thing available to an apples to apples GPU benchmark across SteamOS and Windows, since it is available on both Steam and the Microsoft Store and runs the identical workload on each platform. Install it on both devices, set the resolution to the benchmark’s fixed internal rendering target rather than native display resolution (the tool handles this automatically), lock both handhelds to their maximum sustained performance power profile, and run the test three times per device, discarding the first run as a warm up pass.

For real game testing rather than a synthetic benchmark, you need frame time logging, not just an on screen FPS counter. On Windows, PresentMon captures this data directly from the graphics pipeline.

# Download PresentMon 2.3 or newer from its official GitHub releases page first.
# Run from an elevated PowerShell prompt while your game is running:
.\PresentMon-2.3.0-x64.exe --process_name YourGame.exe --output_file rog_ally_x20_run1.csv --terminate_after 120

On SteamOS, MangoHud provides the equivalent logging through an environment variable passed in a game’s launch options inside Steam.

# Set as the launch option for a specific game in Steam's Properties menu
MANGOHUD=1 MANGOHUD_CONFIG=fps,frame_timing,toggle_logging=Shift_L+F2 %command%

# CSV logs are written automatically to this folder, named after the game
ls ~/.local/share/MangoHud/

Run the same game, at the same graphics settings, for the same 120 second stretch of gameplay on both devices. Pick a repeatable section, such as a specific race lap or a fixed combat encounter, rather than open ended exploration, so the workload is comparable between runs.

Step 9: Build a Weighted Spec and Benchmark Scorecard in Python

Raw CSV files from PresentMon and MangoHud are not directly comparable without a parsing step, and raw benchmark numbers do not tell you which device fits your priorities without a weighting system. This is the complete working project for this tutorial: two small Python scripts that turn frame time logs into a readable summary, and a scorecard that applies your own weights to specs and benchmark results to produce a single recommendation.

First, a script to parse frame time CSVs from either tool and print average FPS alongside the 1 percent low, which is a far better indicator of stutter than a simple average.

# fps_report.py
import pandas as pd
import sys

def summarize(csv_path):
    df = pd.read_csv(csv_path)
    col = "msBetweenPresents" if "msBetweenPresents" in df.columns else "frame_time_ms"
    frame_ms = df[col].astype(float)
    fps = 1000 / frame_ms
    avg_fps = fps.mean()
    low_1pct = fps.quantile(0.01)
    print(f"{csv_path}: avg FPS = {avg_fps:.1f}, 1% low = {low_1pct:.1f}")

if __name__ == "__main__":
    for path in sys.argv[1:]:
        summarize(path)

Run it against both log files from step eight: python fps_report.py rog_ally_x20_run1.csv steam_deck_run1.csv. Feed the printed averages into the scorecard below alongside your own battery rundown minutes from step ten and a simple 1 to 10 price value rating you assign yourself (10 meaning best value for your budget, 1 meaning worst).

# handheld_score.py
WEIGHTS = {
    "cpu": 0.15,
    "gpu": 0.20,
    "fps_avg": 0.20,
    "fps_1pct_low": 0.15,
    "battery_minutes": 0.15,
    "price_value": 0.15,
}

def normalize(value, low, high):
    if high == low:
        return 0.5
    return max(0.0, min(1.0, (value - low) / (high - low)))

def score_device(name, specs, bounds):
    total = 0.0
    breakdown = {}
    for key, weight in WEIGHTS.items():
        norm = normalize(specs[key], bounds[key][0], bounds[key][1])
        contribution = norm * weight
        breakdown[key] = round(contribution, 3)
        total += contribution
    return name, round(total, 3), breakdown

if __name__ == "__main__":
    devices = {
        "Steam Deck OLED": {
            "cpu": 6, "gpu": 6, "fps_avg": 52, "fps_1pct_low": 38,
            "battery_minutes": 300, "price_value": 9,
        },
        "ROG Xbox Ally X20": {
            "cpu": 9, "gpu": 9, "fps_avg": 78, "fps_1pct_low": 60,
            "battery_minutes": 150, "price_value": 5,
        },
    }

    bounds = {k: (min(d[k] for d in devices.values()), max(d[k] for d in devices.values())) for k in WEIGHTS}

    for name, specs in devices.items():
        label, total, breakdown = score_device(name, specs, bounds)
        print(f"{label}: {total}")
        for key, contribution in breakdown.items():
            print(f"  {key}: {contribution}")

The sample numbers in the script are placeholders modeled on the kind of gap a demanding 3D title typically shows between these two chip generations. Replace every value under each device with your own measured results before drawing a conclusion. The WEIGHTS dictionary at the top is the real point of this script: change those six numbers to match what you personally care about. A buyer who games mostly on a couch near an outlet should drop the battery weight toward zero and raise the GPU weight. A buyer who commutes by train should do the opposite.

Step 10: Run a Battery Rundown Test on Both Devices

Valve lists the Steam Deck OLED’s 50Wh battery as good for 3 to 12 hours depending on the content being played, according to the official Steam Deck OLED product page. ASUS has not published an equivalent hour range for the ROG Xbox Ally X20’s 80Wh battery as of this tutorial’s publication, which is itself a reason to measure it yourself rather than compare an unpublished figure against Valve’s published one. Set both devices to 50 percent screen brightness, airplane mode off with Wi-Fi connected, and run the same demanding game in a loop from full charge to automatic shutdown.

# Windows: generate a battery usage report after your test session
powercfg /batteryreport /output "C:\Users\%USERNAME%\Desktop\battery_report.html"

# SteamOS / Linux: check current battery state and estimated time remaining mid-session
upower -i /org/freedesktop/UPower/devices/battery_BAT1 | grep -E "percentage|state|time to empty"

Log the total minutes until shutdown for each device, then feed that figure into the battery_minutes field of the scorecard script from step nine. Expect the larger 80Wh cell in the Ally X20 to run shorter, not longer, than the Deck’s smaller 50Wh cell when both devices are pushed at their maximum performance profile in a demanding game, since the newer chip draws substantially more power under full load than it saves through architectural efficiency gains. A bigger battery number on a spec sheet is not the same claim as longer runtime once the workload is held constant.

Step 11: Interpret Your Scorecard and Make the Final Call

Running the sample handheld_score.py script with its placeholder numbers produces output similar to this:

Steam Deck OLED: 0.483
  cpu: 0.0
  gpu: 0.0
  fps_avg: 0.0
  fps_1pct_low: 0.0
  battery_minutes: 0.15
  price_value: 0.15
ROG Xbox Ally X20: 0.65
  cpu: 0.15
  gpu: 0.2
  fps_avg: 0.2
  fps_1pct_low: 0.15
  battery_minutes: 0.0
  price_value: 0.0

Read the breakdown line by line rather than jumping straight to the total. In this placeholder run, the Ally X20 wins on every performance metric and loses on battery and price value, while the Deck wins on exactly the two categories it was designed around: affordability and endurance. The total score tells you which device wins under your chosen weights, but the breakdown tells you why, which matters far more if your actual priorities shift slightly after seeing the result. If you find yourself disagreeing with your own scorecard’s conclusion, that is a signal to go back and adjust the weights in step nine rather than overriding the math, since the disagreement usually means you undervalued a category you actually care about.

Rerun the full test with every game in your actual library, not just one, before finalizing a purchase decision. A single title’s results can mislead you if that game happens to favor one architecture over another in an unusual way. Keep a running log of every session rather than discarding the raw numbers once you have a total score, since a messy log now is far easier to clean up than trying to remember which settings produced which result three weeks later. A simple spreadsheet or text file with one row per run works fine, structured something like the example below.

Run	Device	Game / Scene	Power Profile	Avg FPS	1% Low FPS	Battery Minutes
1	Steam Deck OLED	Fixed combat encounter, native 800p	Maximum sustained	52	38	128
2	Steam Deck OLED	Same scene, repeat run	Maximum sustained	50	36	131
3	ROG Xbox Ally X20	Fixed combat encounter, native 1080p	Maximum sustained	78	60	74
4	ROG Xbox Ally X20	Same scene, repeat run	Maximum sustained	76	58	71
5	ROG Xbox Ally X20	Same scene, Silent power profile	Silent / low power	41	29	119

Row five in that example log is the one worth paying attention to. It shows the ROG Xbox Ally X20 dropped to roughly the Steam Deck’s performance level once switched to its Silent power profile, while battery minutes climbed closer to the Deck’s range. That single row demonstrates exactly why step four warned against testing at mismatched power settings: the same piece of hardware can look like a completely different device depending on which power profile is active during the test. Average the Steam Deck’s two runs and the Ally X20’s two maximum profile runs separately before feeding final numbers into the scorecard script, and keep the Silent profile row as a separate reference point rather than averaging it into the Ally’s main result.

Common Pitfalls When Comparing Handheld Gaming PC Specs

Comparing TFLOPS across generations as if they are equivalent. A TFLOPS figure from an RDNA 2 chip and one from RDNA 3 or a newer architecture are not directly comparable per unit numbers, since architectural efficiency changes what each compute unit can actually do per clock cycle.
Judging battery life from the Wh rating alone. As step ten demonstrated, a larger battery paired with a hungrier chip can produce shorter real world runtime than a smaller battery paired with a more efficient one.
Testing at mismatched power profiles. Running one device at its lowest power mode and the other at maximum performance and calling the result a fair benchmark invalidates the entire comparison.
Ignoring native resolution differences. A frame rate number means little without knowing whether the device reached it at native resolution or through upscaling, as covered in step six.
Treating Windows 11 and SteamOS as a neutral factor. Background services, update behavior, and driver overhead differ enough between the two operating systems to shift both battery life and frame pacing independent of the underlying silicon.
Skipping a cooldown period between benchmark runs. Thermal throttling after repeated back to back runs without a rest period will quietly drag down your later results and make a device look weaker than it actually is in normal, intermittent play.

Troubleshooting Guide: Fixing the Most Common Issues

PresentMon fails to start with an access denied error. Run PowerShell as administrator, and if the error persists, temporarily disable Windows Core Isolation / Memory Integrity, which can block low level capture drivers.
inxi command not found on SteamOS. Confirm you are in Desktop Mode, not Game Mode, and that the SteamOS filesystem is unlocked for package installation; some SteamOS updates reset this and require re running the install command.
MangoHud overlay does not appear on a Windows based ROG Ally. MangoHud is a Linux only tool. On Windows, use RTSS (RivaTuner Statistics Server) for an equivalent on screen overlay and logging function.
CSV column names differ between PresentMon versions. Open the CSV header row first and adjust the column name in fps_report.py to match, since Intel has changed field names between major PresentMon releases.
Python reports ModuleNotFoundError for pandas. Run pip install pandas in the same Python environment you are using to execute the script, and confirm you are not accidentally running a second, separate Python installation.
powercfg battery report command fails on a handheld. That command only works on Windows. On SteamOS, use the upower command shown in step ten instead.
3DMark Wild Life Extreme will not launch through Steam on the Deck. Switch the game’s compatibility layer to Proton Experimental under Properties, and confirm your SteamOS build is fully updated first.
Scorecard results vary significantly between repeated runs on the same device. Increase your sample size to at least three runs per device per game and average the results, lock the power profile explicitly rather than leaving it on an automatic setting, and confirm both devices are running the identical game patch version.
Frame rate numbers look close, but gameplay still feels smoother on one device. Check the 1 percent low figure from fps_report.py rather than the average. Two devices can post a similar average FPS while one has far worse stutter, which only the 1 percent low metric reliably exposes.

Advanced Tips for Power Users

Once you have the basic scorecard process working, a few refinements make the comparison more useful for a real purchase decision rather than a one time test.

Use ASUS’s Armoury Crate SE software to manually set a custom TDP curve on any ROG Ally model rather than relying on the preset power profiles, then rerun your benchmark at that custom setting to see whether a slightly lower power limit meaningfully extends battery life without a proportional frame rate cost.
On the Steam Deck, install Decky Loader and its performance monitoring plugins to log CPU and GPU utilization alongside frame times, which helps identify whether a game is CPU bound or GPU bound on that specific hardware rather than guessing from the spec sheet alone. If you also run emulated titles through Proton, cross check your results against a current emulator compatibility comparison first, since emulation performance depends as much on the emulator build as on the handheld’s raw specs.
Calculate a cost per frame figure by dividing each device’s purchase price by its measured average FPS in your target games, then compare that number against how many years you expect to keep the device, since a pricier handheld that lasts two extra years before feeling outdated can still be the better long term value.
If you dock either handheld to a TV or monitor, rerun your full benchmark suite in docked mode specifically. Both platforms can behave differently once external display output and charging are both active simultaneously, and that scenario deserves its own data point rather than an assumption carried over from handheld mode results.
Check current microSD and replacement NVMe SSD pricing before finalizing a storage tier decision, since buying the smaller storage configuration of either device and expanding later is frequently cheaper than paying the manufacturer’s premium for the largest built in tier.

The Tools You Will Use at a Glance

Tool	Platform	What it measures	Cost
inxi	SteamOS / Linux	CPU, GPU, and system hardware summary	Free
HWiNFO64	Windows 11	Detailed sensor, clock, and thermal data	Free
PresentMon	Windows 11	Frame time and present latency capture	Free
MangoHud	SteamOS / Linux	In game FPS overlay and CSV logging	Free
3DMark Wild Life Extreme	Both (Steam and Microsoft Store)	Standardized cross platform GPU score	Free tier available
powercfg / upower	Windows 11 / SteamOS respectively	Battery rundown and usage reports	Free, built in

Every tool in that table ships free or has a free tier sufficient for this entire tutorial. You are not required to buy any additional software to complete the full spec and benchmark comparison described above.

Putting the Full Comparison Together

Reviewers at WindowsForum and Tom’s Guide both arrived at the same broad conclusion after testing the ROG Xbox Ally X20 at launch: it is a meaningfully better piece of hardware than the Steam Deck OLED on every performance axis, at a price that puts it in a different buying bracket entirely. That conclusion lines up with the architecture gap this tutorial walked through step by step, Zen 2 versus Zen 4, RDNA 2 versus a newer integrated GPU, 16GB versus 24GB of memory. None of those reviewers tested the devices against your specific game library, your specific brightness setting, or your specific tolerance for Windows 11’s background overhead on a battery powered device, which is exactly the gap the process Is meant to fill.

A reviewer at PC Gamer also flagged that the X20’s 1,299.99 dollar price sits well above what most buyers consider for a handheld, a point worth weighing against the Steam Deck OLED’s 789 dollar starting price before the performance comparison even enters the conversation. If your scorecard from step eleven comes back close between the two devices once price value is weighted honestly, that is not a failure of the process. It means the decision genuinely depends on which two or three categories matter most to you, and you now have the data to make that call with confidence rather than guesswork.

Worth remembering too is that the Ally lineup now spans three price points rather than one, which the sample scorecard above does not fully capture since it only pits the Deck against the flagship X20. If your own run of this process shows the X20 winning mainly on the display and memory categories rather than raw frame rate, it is worth repeating the same steps against the 999 dollar ROG Xbox Ally X instead. That model carries the same 80Wh battery and Zen 4 class performance tier without the OLED screen’s added cost, and for a buyer who weights price value heavily in the scorecard, it can land closer to the Deck’s total score than the X20 does while still delivering most of the performance gap this tutorial measured.

Buyers still undecided between a handheld PC and a console style alternative should also run this same scorecard process against a Switch 2 versus ROG Xbox Ally X comparison or a wider three way test against the Legion Go 2 and AYN Thor, since the same CPU, GPU, battery, and display steps apply regardless of which two handhelds you are putting side by side. The broader handheld and console market has also been shifting fast enough in 2026 that overall hardware demand, not just individual device specs, is worth tracking alongside your personal scorecard; a look at how console hardware sales have moved this year adds useful context for how much weight to put on long term software support when you make your final call.

Frequently Asked Questions

Is the Steam Deck OLED or the ROG Xbox Ally X20 better for most people in 2026?
Neither wins outright for every buyer. The X20 is faster, sharper, and carries more memory, but costs over 500 dollars more than the Deck’s base configuration and shows shorter real world battery life under full load in testing. The Deck remains the better choice for buyers prioritizing price and battery life over peak frame rates.

Do I need to own both devices to use this comparison process?
No. You can run the spec research and command line queries on whichever device you already own, and use review sites or a friend’s device for the other side of the comparison, feeding those numbers into the same scorecard script.

Can I run the Python scorecard script directly on the Steam Deck?
Yes. Switch to Desktop Mode, open a terminal, confirm Python 3 is installed with python3 --version, install pandas with pip install pandas, and run the script exactly as described in step nine.

Why does my 1 percent low FPS number look so much worse than the average?
The 1 percent low captures your worst performing frames, which is where stutter and hitching actually get felt during play. A large gap between your average and your 1 percent low on one device points to inconsistent frame pacing, even if the average FPS number alone looks competitive.

Does Windows 11 overhead really hurt the ROG Xbox Ally X20’s battery life compared to SteamOS on the Deck?
Background services and update processes on Windows 11 do add measurable overhead compared to SteamOS’s Linux based, game focused design. That overhead is one of several factors behind the Ally X20’s shorter measured runtime relative to its battery capacity, alongside its more power hungry chip.

Is the older 999 dollar ROG Xbox Ally X still worth comparing against the Steam Deck OLED?
Yes, particularly for buyers who want the Zen 4 and RDNA 3 performance jump over the Deck without paying for the X20’s OLED display upgrade. Run the same scorecard process against that model if its lower price fits your budget better than the X20.

What if PresentMon or MangoHud will not install on my device?
Confirm your operating system is fully updated first, since both tools depend on relatively recent driver and kernel support. For PresentMon on Windows, confirm you downloaded the correct 64 bit build for your CPU architecture. For MangoHud on SteamOS, confirm Desktop Mode’s filesystem is unlocked for package installation before attempting the install command.

Should I wait for a Steam Deck refresh instead of buying the current OLED model?
Valve has not announced a next generation Steam Deck chip as of this tutorial’s publication date. Basing a purchase decision today on an unannounced future product is not a strategy this tutorial recommends; buy based on the current, confirmed specs and your own test results rather than speculation about what might ship later.

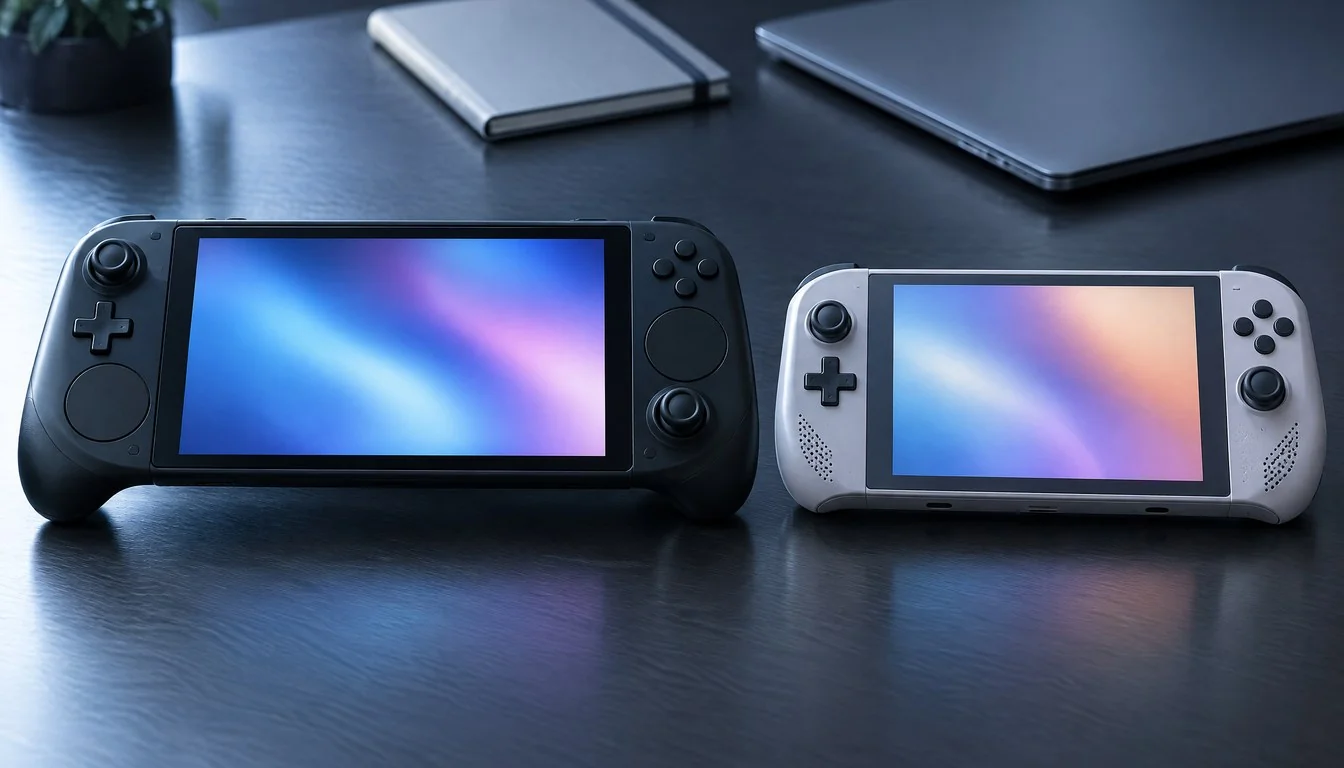

ROG Ally or Steam Deck? Spec Checklist in 11 Steps [2026]
